lev5292

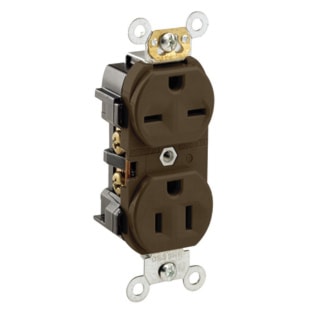

LEVITON 5292 Receptacle duplex self-grounding nylon 15A 125/250V brown
lev5292
LEVITON 5292 Receptacle duplex self-grounding nylon 15A 125/250V brown
Price
$96.14
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5292
Description
Industrial, dual voltage extra heavy-duty back and side wired. Heavy-duty spec grade, duplex. NEMA type 5-15R. Designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc. These industrial grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Type | Duplex Receptacle | Grade | Heavy-Duty Industrial Specification |
| Size | 46 H x 1.55 W x 1.12 D IN | Voltage Rating | 125/250 V |
| Amperage Rating | 15 A | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Side Wired |
| NEMA Rating | 5-15R;6-15R | Material | Thermoplastic Nylon |
| Color | Brown | Dielectric Strength | 2000 (Min.) |
| Grounding | Self-Grounding | Mounting Type | Box |
| Temperature Rating | -40 to 60 °C | Environmental Conditions | Flammability (Rated V-2 Per UL94) |
| Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) | Application | Commercial |
| UPC | 078477901724 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 6400 - Pallet |
