lev52cm62

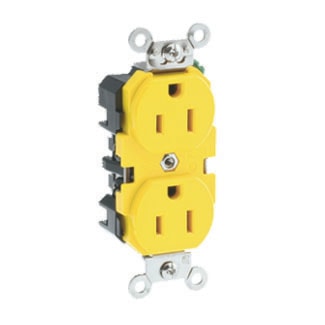

LEVITON 52CM-62 Receptacle straight 2P3W 125V 15A yellow
lev52cm62
LEVITON 52CM-62 Receptacle straight 2P3W 125V 15A yellow
Price
$100.21
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:52CM-62
Description
Levitons line of extra heavy-duty industrial grade receptacle are designed and manufactured to withstand the most demanding environments. These industrial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Duplex Staright Blade Receptacle | Type | Duplex Receptacle |
| Grade | Commercial | Size | 46 H x 1.53 W x 1.11 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back and Side Wired | NEMA Rating | 5-15R |
| Conductor Size | 14-10 AWG | Material | Nylon/Thermoplastic |
| Color | Yellow | Dielectric Strength | 2000 V Minimum |
| Grounding | Self-Grounding | Dimensions | 1.53 in W x 1.11 in D x 46 in H |
| Mounting Type | Box | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Fed Spec WC-596 (File E13399), UL Listed 498 (File E13399) |
| Application | Commercial | UPC | 078477820766 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
