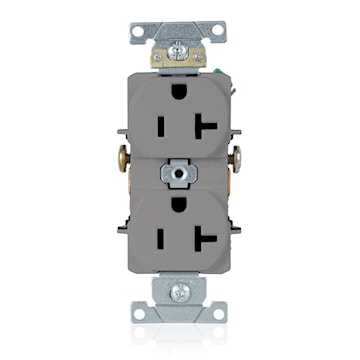

LEVITON 5342-GY Receptacle duplex side wire nylon 20A 125V grey
lev5342gy
LEVITON 5342-GY Receptacle duplex side wire nylon 20A 125V grey
Price
$24.40
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5342-GY
Description
Duplex receptacle, NEMA 5-20R. 2-pole, 3-wire. Industrial series heavy duty specification grade. Straight blade. Self grounding. Side wired. Steel strap. Leviton line of extra heavy duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, hospital grade, etc. These industrial grade devices are the electrical contractor choice for use in factories, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Type | Duplex Outlet,Straight Blade | Grade | Heavy-Duty Industrial Specification |
| Size | 46 H x 1.55 W x 1.12 D IN | Voltage Rating | 125 V |
| Amperage Rating | 20 A | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Side Wired |
| NEMA Rating | 5-20R | Material | Polybutylene/Thermoplastic |
| Color | Gray | Phase | 1 |
| Dielectric Strength | 2000 (Min.) | Grounding | Self-Grounding |
| Mounting Type | Wall Box | Temperature Rating | -40 - 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| Application | Commercial | UPC | 078477788158 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
