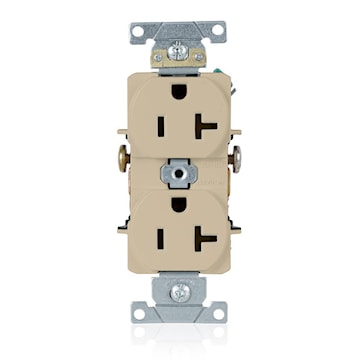

LEVITON 5342-I Smooth Face Straight Blade Duplex Receptacle 20 A, 5-20R Ivory
lev5342i
LEVITON 5342-I Smooth Face Straight Blade Duplex Receptacle 20 A, 5-20R Ivory
Price
$19.31
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5342-I
Description
Industrial-grade heavy-duty duplex receptacle. Nylon face and polypropylene body. Phosphor bronze line contacts. Brass 8-32 terminal and grounding screw. Brass-plated ground clips. Brass-plated terminal and steel-plated grounding screw. Galvanized steel with riveted ground contacts strap. Zinc-plated steel clamp nuts. 2-pole. Self-grounding, 3-wire. 1 HP AC horsepower rating. NEMA-5-20R. Withstands 2000 V per UL498 dielectric voltage. Full rated current limiting. Rated V-2 per UL94 flammability. Rated V-2 per UL94 flammability. -40 to 60°C operating temperature. Terminal accommodates 14 to 10 AWG. Ratings are permanently marked on device. 14-16 inch-lbs torque range. Applicable for factories, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | INDUSTRIAL RECEPTACLES |
| Item Name | Straight Blade Duplex Receptacle | Type | Smooth Face |
| Grade | Commercial | Size | 46 H x 1.55 W x 1.12 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-20R | Connection Type | Side Wired |
| NEMA Rating | 5-20R | Conductor Size | 14-10 AWG |
| Material | Polybutylene/Thermoplastic | Color | Ivory |
| Phase | 1 | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 46 in H x 1.55 in W x 1.12 in D |
| Mounting Type | Wallbox | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Fed Spec WC-596 (File E13399), UL Listed 498 (File E13399) |
| Application | For Commercial | UPC | 078477788196 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
