lev5362i

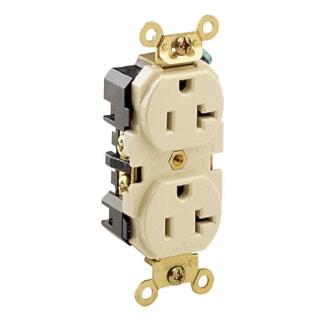

LEVITON 5362-I Heavy Duty, Narrow Body Straight Blade Duplex Receptacle 20 A, 5-20R Ivory
lev5362i
LEVITON 5362-I Heavy Duty, Narrow Body Straight Blade Duplex Receptacle 20 A, 5-20R Ivory
Price
$37.90
/ EA
Inventory
In Stock
Manufacturer:LEVITON
Manufacturer #:5362-I
Description
20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Industrial Series Extra Heavy Duty Specification Grade, Duplex Receptacle, Straight Blade, Self Grounding, Back & Side 8 Hole Feed-Thru Wired, Brass Strap, - IVORY
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Straight Blade Duplex Receptacle | Type | Heavy Duty, Narrow Body |
| Grade | Commercial | Size | 46 H x 1.53 W x 1.11 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-20R | Connection Type | Back and Side Wired |
| NEMA Rating | 5-20R | Conductor Size | 14 - 10 AWG |
| Material | Thermoplastic | Color | Ivory |
| Frequency Rating | 50/60 Hz | Phase | 1 |
| Terminal Connection | Screw Terminal | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 1.53 in W x 1.11 in D x 46 in H |
| Mounting Type | Wall Box, Flush, Screw | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Fed Spec WC-596 (File E13399), UL 498 (File E13399) |
| Application | Commercial | UPC | 078477139516 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
