lev5320tcp

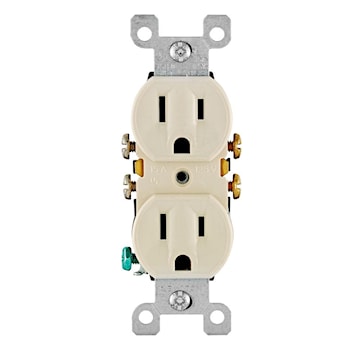

LEVITON 5320-TCP Duplex Receptacle Straight Blade Duplex Receptacle 15 A, 5-15R Light Almond
lev5320tcp
LEVITON 5320-TCP Duplex Receptacle Straight Blade Duplex Receptacle 15 A, 5-15R Light Almond
Price
$2.90
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5320-TCP
Description
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, With Ears Duplex Receptacle, Straight Blade, Residential Grade, Grounding, All Screws Backed Out Contractor Pack, Quickwire Push-In & Side Wired, Steel Strap, Light Almond.
Specifications
| Brand Name | Leviton | Sub Brand | RESIDENTIAL RECEPTACLES |
| Item Name | Straight Blade Duplex Receptacle | Type | Duplex Outlet,Straight Blade |
| Grade | Commercial | Size | 4.2 H x 1.33 W x 19 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-15R | Connection Type | Quickwire Push-In and Side Wired |
| NEMA Rating | 5-15R | Conductor Size | 14 AWG |
| Material | Thermoplastic | Color | Light Almond |
| Frequency Rating | 50/60 Hz | Terminal Connection | Screw Terminal |
| Grounding | Grounding | Dimensions | 1.33 in W x 19 in D x 4.2 in H |
| Mounting Type | Wallplate, Flush, Screw | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 per UL94) | Standards | NOM Certified (057), CSA Certified (File LR-406), UL 498, UL 1561 |
| Application | Commercial | UPC | 078477274927 |
Packages
| 1 - Unit | 10 - Box | 200 - Crate | 6400 - Pallet |
