lev5325t

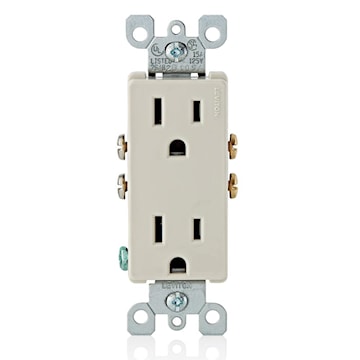

LEVITON 5325-T 15 Amp Decora Duplex Outlet/Receptacle, Grounding, Light Almond
lev5325t
LEVITON 5325-T 15 Amp Decora Duplex Outlet/Receptacle, Grounding, Light Almond
Price
$2.95
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5325-T
Description
15 Amp, 125 Volt, NEMA 5-15R, 2-Pole, 3-Wire, Decora Duplex Receptacle, Straight Blade, Residential Grade, Grounding, Quickwire Push-In & Side Wired, Steel Strap - Light Almond
Specifications
| Brand Name | Leviton | Sub Brand | Decora® |
| Type | Duplex Outlet,Straight Blade | Size | 4.20 H x 1.31 W x 0.98 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Quickwire Push-In And Side Wired | NEMA Rating | 5-15R |
| Material | Thermoplastic Rubber | Color | Light Gray |
| Grounding | Grounding | Mounting Type | Wallplate |
| Temperature Rating | -40 to 60 °C | Environmental Conditions | Flammability (Rated V-2 Per UL94) |
| Standards | NOM Certified (057);CSA Certified (File LR-406);UL Listed (File E13399) | Application | Commercial |
| UPC | 078477274934 |
Packages
| 1 - Unit | 10 - Box | 200 - Crate | 6400 - PALLETTE |
