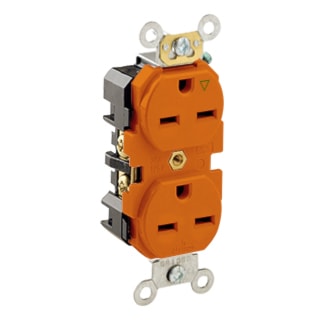

LEVITON 5662-IG Duplex Receptacle Duplex Receptacle 15 A, 6-15R Orange
lev5662ig
LEVITON 5662-IG Duplex Receptacle Duplex Receptacle 15 A, 6-15R Orange
Price
$61.76
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5662-IG
Description
Industrial-grade extra heavy-duty duplex receptacle. Thermoplastic nylon face and body. Brass triple-wipe 0.031 inch thick line contacts. Brass 10-32 terminal and brass 8-32 grounding screws. Brass-plated terminal screw. Galvanized steel clamp nuts. Back and side 8 hole feed-through wire. Straight blade wiring. 1-1/2 HP AC horsepower rating. 2-pole. Isolated-grounding, 3-wire. NEMA-6-15R. Withstands 2000 V per UL498 dielectric voltage. Full rated current limiting. Rated V-2 per UL94 flammability. -40 to 60°C operating temperature. Terminal accommodates 14 to 10 AWG. Ratings are permanently marked on device. 14 to 16 inch-lbs torque range. Receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Duplex Receptacle | Type | Duplex Receptacle |
| Grade | Heavy-Duty Industrial Specification | Size | 46 H x 1.33 W x 1.12 D IN |
| Voltage Rating | 250 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back and Side Wired | NEMA Rating | 6-15R |
| Conductor Size | 14-10 AWG | Material | Nylon/Thermoplastic |
| Color | Orange | Dielectric Strength | 2000 V (Min) |
| Grounding | Isolated Grounding | Dimensions | 46 in H x 1.33 in W x 1.12 in D |
| Mounting Type | Box | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | UL 498 Listed in File Number E13399, 1449, CSA C22.2 Listed in File Number 152105, NEMA, ANSI |
| Application | For Industrial Applications | UPC | 078477052433 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
