lev80w47d

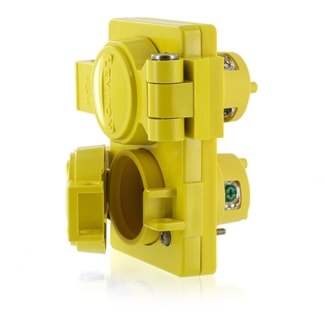

LEVITON 80W47-D Wetguard® Duplex Outlet Straight Blade Duplex Receptacle 15 A, NEMA 4, 4X, 12 Yellow
lev80w47d
LEVITON 80W47-D Wetguard® Duplex Outlet Straight Blade Duplex Receptacle 15 A, NEMA 4, 4X, 12 Yellow
Price
$299.90
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:80W47-D
Description
Straight blade duplex outlet. Industrial grade, grounding.
Specifications
| Brand Name | Leviton | Sub Brand | Wetguard® |
| Item Name | Straight Blade Duplex Receptacle | Type | Duplex Outlet |
| Grade | Industrial | Voltage Rating | 125 V |
| Amperage Rating | 15 A | Wire Type | Grounding |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-15R | NEMA Rating | NEMA 4, 4X, 12 |
| Conductor Size | 18-10 AWG | Material | Valox PBT |
| Color | Yellow | Degree of Protection | IP66 |
| Terminal Connection | Screw | Dielectric Strength | 2000 V |
| Grounding | Grounding | Contact Material | Brass |
| Dimensions | 3.13 in W x 2.9 in D x 4.63 in H | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | UL 94 V-2 Flammability | Standards | ANSI C73, UL 498, CSA C22.2 No. 42, NOM 057 Certified, NEMA WD-6 |
| Application | Industrial | UPC | 078477518502 |
Packages
| 1 - Unit | 5 - Crate | 600 - Pallet |
