lev8200gy

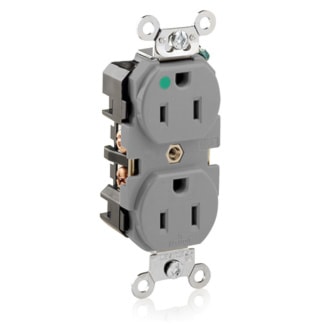

LEVITON 8200-GY Receptacle 5-15R duplex hosp 2P 15A 125V grey
lev8200gy
LEVITON 8200-GY Receptacle 5-15R duplex hosp 2P 15A 125V grey
Price
$36.49
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:8200-GY
Description
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Extra Heavy Duty Hospital Grade, Duplex Receptacle, Straight Blade, Self Grounding, Back & Side Wired, 8 Hole Feed-Thru - GRAY
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Type | Duplex Outlet,Straight Blade | Grade | Extra Heavy-Duty Hospital |
| Size | 46 H x 1.53 W x 1.11 D IN | Voltage Rating | 125 V |
| Amperage Rating | 15 A | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Back And Side Wired |
| NEMA Rating | 5-15R | Material | Thermoplastic Rubber |
| Color | Gray | Phase | 1 |
| Dielectric Strength | 2000 (Min.) | Grounding | Self-Grounding |
| Mounting Type | Wall Box | Temperature Rating | -40 to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) |
| Application | Commercial | UPC | 078477818596 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
