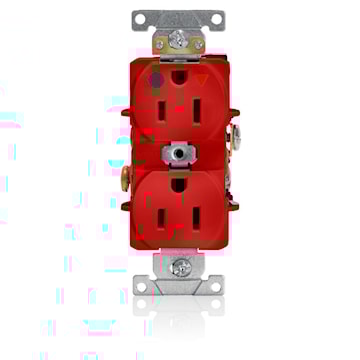

LEVITON 8200-IGR Outlet, Isolated Ground Straight Blade Duplex Receptacle 15 A, 5-15R Red
lev8200igr
LEVITON 8200-IGR Outlet, Isolated Ground Straight Blade Duplex Receptacle 15 A, 5-15R Red
Price
$43.47
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:8200-IGR
Description
Leviton hospital grade receptacle undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools. Isolated Ground, Back and side wired, Nickel plated brass strap.
Specifications
| Brand Name | Leviton | Sub Brand | INDUSTRIAL RECEPTACLES |
| Item Name | Straight Blade Duplex Receptacle | Type | Outlet, Isolated Ground |
| Grade | Hospital | Size | 46 H x 1.55 W x 1.12 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Wire Type | Stranded or Solid | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Back and Side Wire |
| NEMA Rating | 5-15R | Conductor Size | 14-10 AWG |
| Material | Thermoplastic | Color | Red |
| Finish | Matte | Phase | 1 |
| Terminal Connection | Screw | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding,Self-Grounding | Dimensions | 38.9 mm W x 28.1 mm D x 103.2 mm H |
| Mounting Type | Wallbox, Flush | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | UL 94 Requirements, V2 Rated Flammability | Standards | ANSI C73, UL 498 HG, UL File Number E13399, CSA File Number 152105, CSA C22.2 No. 42, Federal Specification WC-596, NOM 057 Certified, NEMA WD-1, WD-6 |
| Application | Hospital | UPC | 078477057322 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
