lev8200plr

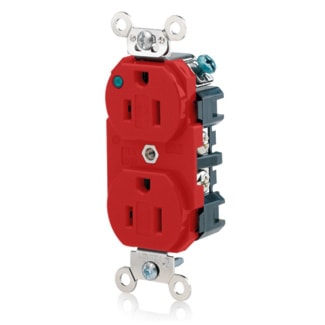

LEVITON 8200-PLR Receptacle duplex power indication nylon 15A 125V red
lev8200plr
LEVITON 8200-PLR Receptacle duplex power indication nylon 15A 125V red
Price
$70.65
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:8200-PLR
Description
Duplex receptacle, NEMA 5-15R. 2-pole, 3-wire. Extra heavy duty hospital grade. Straight blade. Self grounding. Power indication. Back and side wired. Nickel plated brass strap. All Leviton hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.
Specifications
| Brand Name | Leviton | Sub Brand | INDUSTRIAL RECEPTACLES |
| Type | Duplex Outlet,Straight Blade | Grade | Extra Heavy-Duty Hospital |
| Size | 46 H x 1.53 W x 1.11 D IN | Voltage Rating | 125 V |
| Amperage Rating | 15 A | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Back And Side Wired |
| NEMA Rating | 5-15R | Material | Thermoplastic Rubber |
| Color | Red | Phase | 1 |
| Dielectric Strength | 2000 (Min.) | Grounding | Self-Grounding |
| Mounting Type | Wall Box | Temperature Rating | -40 to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) |
| Application | Commercial | UPC | 078477109052 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
