lev8210i

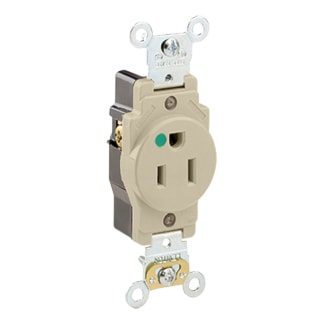

LEVITON 8210-I Receptacle straight 2P3W 125V 15A ivory
lev8210i
LEVITON 8210-I Receptacle straight 2P3W 125V 15A ivory
Price
$44.18
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:8210-I
Description
Leviton hospital grade receptacle undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools. Self grounding, Back and side wired.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Type | Single Outlet,Straight Blade | Grade | Heavy-Duty Hospital |
| Size | 46 H x 1.53 W x 1.11 D IN | Voltage Rating | 125 V |
| Amperage Rating | 15 A | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Back And Side Wired |
| NEMA Rating | 5-15R | Material | Nylon |
| Color | Ivory | Phase | 1 |
| Dielectric Strength | 2000 (Min.) | Grounding | Self-Grounding |
| Mounting Type | Wall Box | Temperature Rating | -40 - 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) |
| Application | Commercial | UPC | 078477263617 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
