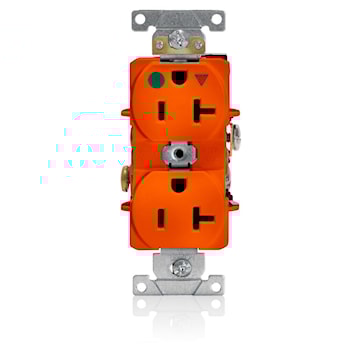

LEVITON 8300-OIG Receptacle straight 2P3W 125V 20A orange
lev8300oig
LEVITON 8300-OIG Receptacle straight 2P3W 125V 20A orange
Price
$73.03
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:8300-OIG
Description
Leviton hospital grade receptacle undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools. Isolated Ground, Back and side wired, Nickel plated brass strap.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Duplex Receptacle | Type | Straight Blade |
| Grade | Heavy Duty Hospital | Size | 46 H x 1.53 W x 1.11 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Wire Type | Stranded Building Wire | Wattage | 1 hp |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | NEMA 5-20R | Connection Type | Back And Side Wired |
| NEMA Rating | 5-20R | Conductor Size | 14-10 AWG |
| Material | Thermoplastic, Polyester Face | Color | Orange |
| Phase | 1 | Wiring Configuration | Back and Side Wired |
| Dielectric Strength | 2000 V | Grounding | Self-Grounding |
| Dimensions | 1.53 in W x 1.11 in D x 46 in H | Mounting Type | Wall Box |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 V-0 Flammability |
| Standards | ANSI C-73, CSA 22.2 No. 42, Fed Spec W-C-569, UL 498, NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Fed Spec WC-596 (File E13399), UL Listed 498 HG (File E13399) | Application | Hospital |
| UPC | 078477057384 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
