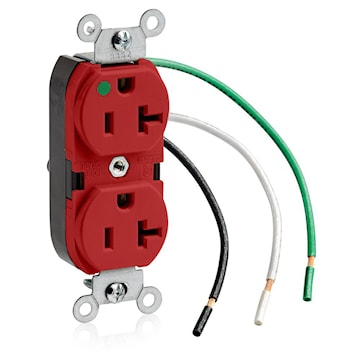

LEVITON 8300-LR Receptacle duplex 2-pole 6" wire lead 20A 125V red
lev8300lr
LEVITON 8300-LR Receptacle duplex 2-pole 6" wire lead 20A 125V red
Price
$61.76
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:8300-LR
Description
Heavy-duty hospital grade duplex straight blade wiring receptacle. Nylon/polycarbonate body. Nylon face. Brass triple-wipe 0.031 inch thick/phosphor bronze line contact. 12 AWG (6 inch) THHN wire terminal leads and grounding leads. Zinc-plated steel yoke. Brass-plated ground clip. Galvanized steel with riveted ground contacts strap. Die-cast aluminium bushing. Steel mounting screws. 1 HP rating. 20 A, 125 V, NEMA-5-20R, 2-pole, 3-wire. Withstands 2000 V per UL498 dielectric voltage. Full rated current rating. -40 to 60°C operating temperature. Smooth face. Receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.
Specifications
| Brand Name | Leviton | Sub Brand | INDUSTRIAL RECEPTACLES |
| Type | Duplex Outlet,Straight Blade | Grade | Heavy-Duty Hospital |
| Size | 46 H x 1.53 W x 1.11 D IN | Voltage Rating | 125 V |
| Amperage Rating | 20 A | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Wire Lead |
| NEMA Rating | 5-20R | Material | Thermoplastic Rubber |
| Color | Red | Phase | 1 |
| Dielectric Strength | 2000 (Min.) | Grounding | Self-Grounding |
| Mounting Type | Wall Box | Temperature Rating | -40 - 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399) |
| Application | Commercial | UPC | 078477284025 |
Packages
| 1 - Unit | 10 - Box | 100 - Crate | 5000 - Pallet |
