Description

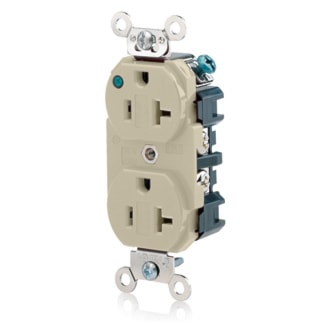

Duplex, Power Indication™ nickel plated brass strap with integral ground. NEMA type 5-20R. Impact-resistant thermoplastic nylon cover and body. Smooth face does not collect dirt. Four corner latches securely fasten face. Extra heavy-duty triple-wipe, brass T-contacts for superior contact and conductivity. High-performance brass No.10-32 terminal screws to reduce conductor oxidation. Back and side-wire ground termination brass strap version. Back and side-wiring options. Break-off tabs for easy two-circuit conversion. Apron barrier to prevent accidental contact between terminal screw heads and metal box. Exclusive V-shaped, serrated back-wiring clamps for superior contact. Power Indication™ provides permanent green dot lens with 100000 hour LED status indicator. Wire lead receptacles for fast and easy installation. Backed by a limited 10-year warranty.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Straight Blade Duplex Receptacle | Type | Narrow Body |
| Grade | Hospital | Size | 46 H x 1.53 W x 1.11 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-20R | Connection Type | Back and Side Wired |
| NEMA Rating | 5-20R | Conductor Size | 14 - 10 AWG |
| Material | Thermoplastic | Color | Ivory |
| Phase | 1 | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 1.53 in W x 1.11 in D x 46 in H |
| Mounting Type | Wall Box | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Fed Spec WC-596 (File E13399), UL 498 HG (File E13399) |
| Application | Commercial | UPC | 078477109076 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
