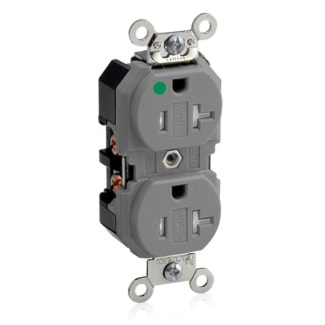

LEVITON 8300-SGG Tamper-Resistant Straight Blade Duplex Receptacle 20 A, 5-20R Gray
lev8300sgg
LEVITON 8300-SGG Tamper-Resistant Straight Blade Duplex Receptacle 20 A, 5-20R Gray
Price
$74.12
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:8300-SGG
Description
Extra heavy-duty hospital grade duplex tamper-resistant receptacle. Nylon face and body. Nickel-plated brass triple-wipe 0.031 inch thick line contact. Nickel-plated brass 10-32 terminal screws. Nickel-plated brass 8-32 grounding screw. Nickel-plated brass yoke. Nickel-plated brass clamp nut. Nickel-plated brass ground clip. Nickel-plated brass strap. 1 HP rating. 20 A, 125 V, NEMA-5-20R, 2-pole, 3-wire. Back and side termination. Withstands 2000 V per UL498 dielectric voltage. Full rated current limiting. -40 to 60°C operating temperature. 8-hole feedthrough.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Straight Blade Duplex Receptacle | Type | Tamper-Resistant |
| Grade | Hospital | Size | 46 H x 1.51 W x 1.23 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-20R | Connection Type | Back and Side Wired |
| NEMA Rating | 5-20R | Conductor Size | 14 - 10 AWG |
| Material | Thermoplastic | Color | Gray |
| Phase | 1 | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 1.51 in W x 1.23 in D x 46 in H |
| Mounting Type | Wall Box | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Fed Spec WC-596 (File E13399), UL 498 HG (File E13399) |
| Application | Hospitals | UPC | 078477057209 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
