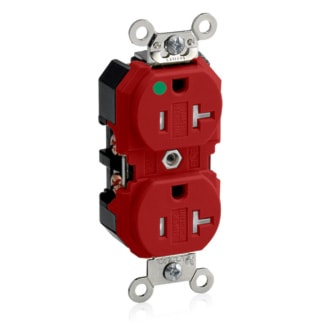

LEVITON 8300-SGR Outlet Straight Blade Duplex Receptacle 20 A, 5-20R Red
lev8300sgr
LEVITON 8300-SGR Outlet Straight Blade Duplex Receptacle 20 A, 5-20R Red
Price
$107.09
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:8300-SGR
Description
Extra heavy-duty hospital grade duplex tamper-resistant receptacle. Nylon face and body. Nickel-plated brass triple-wipe 0.031 inch thick line contact. Nickel-plated brass 10-32 terminal screws. Nickel-plated brass 8-32 grounding screw. Nickel-plated brass yoke. Nickel-plated brass clamp nut. Nickel-plated brass ground clip. Nickel-plated brass strap. 1 HP rating. 20 A, 125 V, NEMA-5-20R, 2-pole, 3-wire. Back and side termination. Withstands 2000 V per UL498 dielectric voltage. Full rated current limiting. -40 to 60°C operating temperature. 8-hole feedthrough.
Specifications
| Brand Name | Leviton | Sub Brand | INDUSTRIAL RECEPTACLES |
| Item Name | Straight Blade Duplex Receptacle | Type | Outlet |
| Grade | Hospital | Size | 46 H x 1.51 W x 1.23 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back and Side Wire | NEMA Rating | 5-20R |
| Conductor Size | 14-10 AWG | Material | Thermoplastic |
| Color | Red | Phase | 1 |
| Dielectric Strength | 2000 V | Grounding | Self-Grounding |
| Dimensions | 1.51 in W x 1.23 in D x 46 in H | Mounting Type | Wallbox |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 Requirements, V2 Rated Flammability |
| Standards | ANSI C73, UL 498 HG, UL File Number E13399, CSA File Number 152105, CSA C22.2 No. 42, Federal Specification WC-596, NOM 057 Certified, NEMA WD-1, WD-6 | Application | Hospital |
| UPC | 078477057216 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
