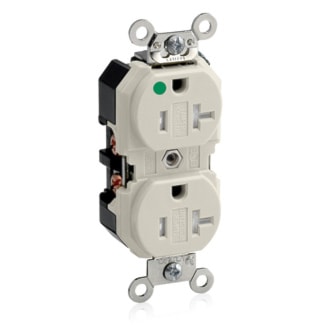

LEVITON 8300-SGT Receptacle duplex 2-pole tamper-resistant 20A 125V light-almond
lev8300sgt
LEVITON 8300-SGT Receptacle duplex 2-pole tamper-resistant 20A 125V light-almond
Price
$84.79
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:8300-SGT
Description
Extra heavy-duty hospital grade duplex tamper-resistant receptacle. Nylon face and body. Nickel-plated brass triple-wipe 0.04 inch thick line contact. Nickel-plated brass terminal screws. Plated brass grounding screw. Nickel-plated brass clamp nut. Nickel-plated brass ground clip. Nickel-plated brass strap. Delrin® Acetal shutter mechanism. 1 HP rating. 20 A, 125 V, NEMA-5-20R, 2-pole, 3-wire. Back and side wired. Withstands 2000 V per UL498 dielectric voltage. Full rated current limiting. -40 to 60°C operating temperature. 8-hole feedthrough. Receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Type | Duplex Outlet,Straight Blade | Grade | Extra Heavy-Duty Hospital |
| Size | 46 H x 1.51 W x 1.23 D IN | Voltage Rating | 125 V |
| Amperage Rating | 20 A | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Back And Side Wired |
| NEMA Rating | 5-20R | Material | Thermoplastic Rubber |
| Color | Light Almond | Phase | 1 |
| Dielectric Strength | 2000 (Min.) | Grounding | Self-Grounding |
| Mounting Type | Wall Box | Temperature Rating | -40 to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399) |
| Application | Commercial | UPC | 078477321614 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
