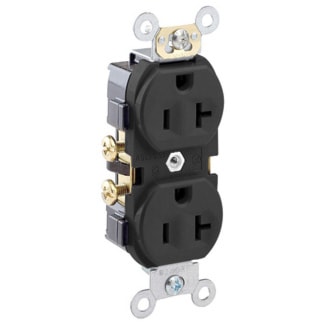

LEVITON CANADA CR20-E Outlet Straight Blade Duplex Receptacle 20 A, 5-20R Black
levcr20e
LEVITON CANADA CR20-E Outlet Straight Blade Duplex Receptacle 20 A, 5-20R Black
Price
$4.25
/ EA
Inventory
In Stock
Manufacturer:LEVITON CANADA
Manufacturer #:CR20-E
Description
Leviton’s line of heavy-duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc. These commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Commercial Receptacles |
| Item Name | Straight Blade Duplex Receptacle | Type | Outlet |
| Grade | Commercial | Size | 46 H x 1.56 W x 19 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Side Wire | NEMA Rating | 5-20R |
| Conductor Size | 14-10 AWG | Material | Thermoplastic |
| Color | Black | Phase | 1 |
| Terminal Connection | Blade | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 39 mm W x 27.1 mm D x 103.2 mm H |
| Mounting Type | Wallbox, Flush | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | UL 94 Requirements, V2 Rated Flammability | Standards | ANSI C73, UL 498, CSA C22.2 No. 42, CSA File Number 152105, CSA File Number E13399, NOM 057 Certified, NEMA WD-2, WD-1, WD-6 |
| Application | Commercial | UPC | 078477977521 |
Packages
| 1 - Unit | 10 - Box | 100 - Crate | 6400 - Pallet |
