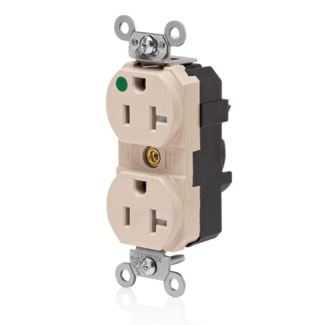

LEVITON MT830-ILT Receptacle duplex illuminated tamper-resistant 20A 125V light-almond
levmt830ilt
LEVITON MT830-ILT Receptacle duplex illuminated tamper-resistant 20A 125V light-almond
Price
$64.61
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:MT830-ILT
Description
Extra heavy duty hospital grade duplex receptacle. Smooth face, illuminated tamper-resistant. NEMA type-5-20R. The Lev-Lok® modular wiring device system is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation.
Specifications
| Brand Name | Leviton | Sub Brand | Lev-Lok® |
| Item Name | Straight Blade Duplex Receptacle | Type | Straight Blade;Duplex Outlet |
| Grade | Commercial | Size | 46 H x 1.55 W x 1.56 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Rating | 5-20R | Conductor Size | 12 AWG |
| Material | Thermoplastic | Color | Light Almond |
| Phase | 1 | Terminal Connection | Modular Terminal |
| Dielectric Strength | 2000 V | Grounding | Self-Grounding |
| Dimensions | 1.55 in W x 4.06 in H x 1.56 in D | Mounting Type | Wall Box |
| Temperature Rating | -40 °C to 60 °C | Standards | NEMA WD-1, WD-6, ANSI C-73, NOM 057 Certified, CSA 152105, UL Listed 498 and Federal SpecificationsWD496 E13399, RoHS Compliant |
| Application | Commercial | UPC | 078477553138 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 4500 - Pallet |
