LEVMT162ILG

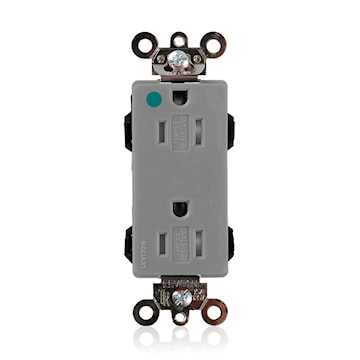

LEVITON MT162-ILG Receptacle duplex illuminated tamper-resistant 15A 125V grey
Description
Decora Plus™ Extra heavy duty hospital grade duplex receptacle. Illuminated, tamper-resistant. NEMA type-5-15R. The illuminated face makes it easy to identify energized receptacles in both light and dark conditions, making them ideal for use on emergency circuits.
Specifications
| Brand Name | Leviton | Sub Brand | Lev-Lok® |
| Type | Duplex Outlet,Straight Blade | Grade | Extra Heavy-Duty Hospital |
| Size | 462 H x 1.549 W x 1.36 D IN | Voltage Rating | 125 V |
| Amperage Rating | 15 A | Phase | 1 |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Rating | 5-15R | Dielectric Strength | 2000 (Min.) V |
| Grounding | Self-Grounding | Material | Thermoplastic |
| Color | Light Gray | Temperature Rating | -40 to 60 °C |
| Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA (152105);UL Listed 498 and Fed Spec WD496 (E13399);RoHS Compliant | Application | Commercial |
| UPC | 078477593035 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 4500 - Pallet |
