hubh320r

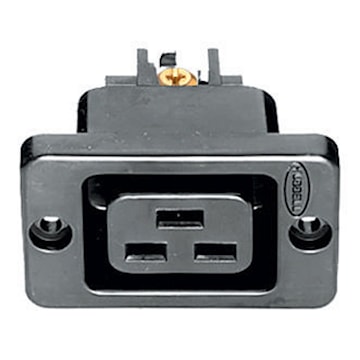

HUBBELL H320R Straight Blade Devices IEC Appliance Coupler, Female, Heavy Duty Straight Blade Single Receptacle 16/20 A, Non-NEMA Black
hubh320r
HUBBELL H320R Straight Blade Devices IEC Appliance Coupler, Female, Heavy Duty Straight Blade Single Receptacle 16/20 A, Non-NEMA Black
Price
$42.11
/ EA
Inventory
Available for backorder
Manufacturer:HUBBELL
Manufacturer #:H320R
Description
Straight blade, IEC 320 devices. Female receptacle. International rated. Pressure screw terminal. Single pack.
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Straight Blade Devices |
| Item Name | Straight Blade Single Receptacle | Type | IEC Appliance Coupler, Female, Heavy Duty |
| Size | 1.41 in x 1.89 in x 1.52 in | Voltage Rating | 250 V |
| Amperage Rating | 16/20 A | Wattage | 7500 W |
| Number of Poles | 3 | Number of Wires | 3 |
| NEMA Rating | Non-NEMA | Conductor Size | 16-12 AWG |
| Material | Thermoplastic | Color | Black |
| Phase | 1 | Terminal Connection | Screw |
| Dielectric Strength | Withstands 2,000V minimum | Mounting Type | Screw |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means | Standards | UL Listed 20 A 250 VAC - File No. E2186, CSA Certified 20 A 250 VAC-File No 17337, TUV Certified at 16 A 250 VAC File No. E0077112.07 |
| Application | Heavy Duty | UPC | 783585777054 |
Packages
| 1 - Unit | 10 - Box | 30 - Crate | 50 - Box |
