lev16241w

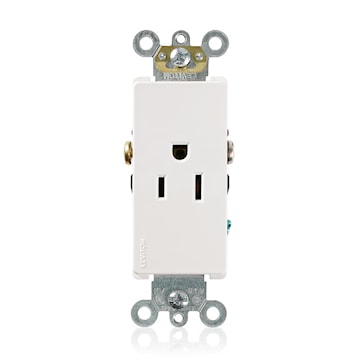

LEVITON 16241-W Decora Plus™ Single Outlet,Straight Blade Straight Blade Single Receptacle 15 A, 5-15R White
lev16241w
LEVITON 16241-W Decora Plus™ Single Outlet,Straight Blade Straight Blade Single Receptacle 15 A, 5-15R White
Price
$15.90
/ EA
Inventory
In Stock
Manufacturer:LEVITON
Manufacturer #:16241-W
Description
Leviton's line of heavy-duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Decora Plus™ |
| Item Name | Straight Blade Single Receptacle | Type | Single Outlet,Straight Blade |
| Grade | Commercial | Size | 46 H x 1.52 W x 1.14 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-15R | Connection Type | Side Wired |
| NEMA Rating | 5-15R | Conductor Size | 14 - 10 AWG |
| Material | Thermoplastic | Color | White |
| Phase | 1 | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 1.52 in W x 1.14 in D x 46 in H |
| Mounting Type | Wall Box | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), UL 498 (File E13399) |
| Application | Commercial | UPC | 078477473160 |
Packages
| 1 - Unit | 10 - Box | 100 - Crate | 4000 - Pallet |
