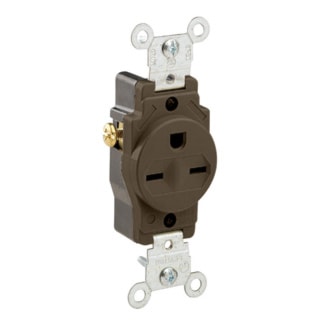

LEVITON 5029 Outlet Straight Blade Single Receptacle 15 A, 6-15R Brown
lev5029
LEVITON 5029 Outlet Straight Blade Single Receptacle 15 A, 6-15R Brown
Price
$23.62
/ EA
Inventory
In Stock
Manufacturer:LEVITON
Manufacturer #:5029
Description
Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Commercial Receptacles |
| Item Name | Straight Blade Single Receptacle | Type | Outlet |
| Grade | Commercial | Size | 46 H x 1.38 W x 16 D IN |
| Voltage Rating | 250 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Side Wire | NEMA Rating | 6-15R |
| Conductor Size | 14-10 AWG | Material | Nylon |
| Color | Brown | Finish | Matte |
| Frequency Rating | 50/60 Hz | Phase | 1 |
| Terminal Connection | Screw | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 33.7 mm W x 26.9 mm D x 103.2 mm H |
| Mounting Type | Wallbox, Flush | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | UL 94 Requirements, V2 Rated Flammability | Standards | ANSI C73, UL 498, UL File Number E13399, CSA File Number 152105, CSA C22.2 No. 42, Federal Specification WC-596, NOM 057 Certified, NEMA WD-2, WD-6 |
| Application | Commercial | UPC | 078477207505 |
Packages
| 1 - Unit | 10 - Box | 100 - Crate | 4000 - Pallet |
