lev5261cr

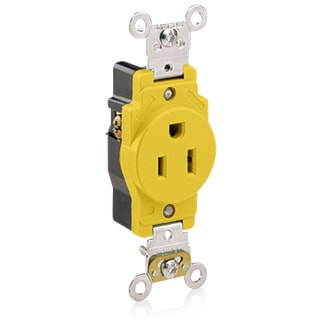

LEVITON 5261-CR Single Outlet,Straight Blade Straight Blade Single Receptacle 15 A, 5-15R Yellow
lev5261cr
LEVITON 5261-CR Single Outlet,Straight Blade Straight Blade Single Receptacle 15 A, 5-15R Yellow
Price
$88.64
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5261-CR
Description
Leviton's line of heavy-duty industrial grade receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Straight Blade Single Receptacle | Type | Single Outlet,Straight Blade |
| Grade | Commercial | Size | 46 H x 1.31 W x 16 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-15R | Connection Type | Back and Side Wired |
| NEMA Rating | 5-15R | Conductor Size | 18-10 AWG |
| Material | Santoprene TPV | Color | Yellow |
| Phase | 1 | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 46 in H x 1.31 in W x 16 in D |
| Mounting Type | Wallbox | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Corrosion-Resistant | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (LR-406), UL Fed Spec WC-596 (File E13399), UL Listed 498 |
| Application | For Commercial | UPC | 078477125120 |
Packages
| 1 - Unit | 10 - Box | 30 - Crate | 3840 - Pallet |
