lev5207s10

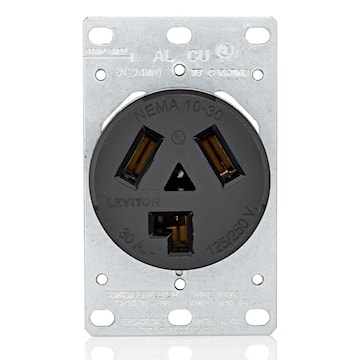

LEVITON 5207-S10 Receptacle Straight Blade Single Receptacle 30 A, 10-30R Black
lev5207s10
LEVITON 5207-S10 Receptacle Straight Blade Single Receptacle 30 A, 10-30R Black
Price
$53.88
/ EA
Inventory
In Stock
Manufacturer:LEVITON
Manufacturer #:5207-S10
Description
30 Amp, 125/250 Volt, NEMA 10-30R, 3P, 3W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Non-grounding, Side Wired, Steel Strap – Black
Specifications
| Brand Name | Leviton | Sub Brand | RESIDENTIAL RECEPTACLES |
| Item Name | Straight Blade Single Receptacle | Type | Receptacle |
| Grade | Industrial | Voltage Rating | 125/250 V |
| Amperage Rating | 30 A | Number of Poles | 3 |
| Number of Wires | 3 | Connection Type | Side Wired |
| NEMA Rating | 10-30R | Conductor Size | 4 AWG |
| Material | Thermoplastic, Galvanized Steel | Color | Black |
| Maximum Load Capacity | 2 hp | Dielectric Strength | 2000 V |
| Grounding | Non-Grounding | Contact Material | Double-Wipe Brass |
| Dimensions | 2.42 in W x 1.61 in D x 3-3/4 in H | Mounting Type | Flush |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94-V2 Flammability |
| Standards | ANSI C73 Certified, UL 486E, 498, UL File Number E13399, CSA File Number 152105, CSA C22.2 No. 42, CSA C22.2 No. 14, C22.2 No. 65, NOM-ANCE, NEMA WD-6 | Application | For Industrial Use |
| UPC | 078477905753 |
Packages
| 1 - Unit | 20 - Crate | 1320 - Pallet |
