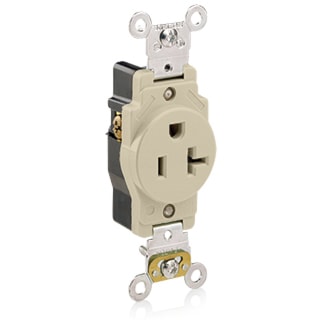

LEVITON 5361-I New Design Straight Blade Single Receptacle 20 A, 5-20R Ivory
lev5361i
LEVITON 5361-I New Design Straight Blade Single Receptacle 20 A, 5-20R Ivory
Price
$20.68
/ EA
Inventory
In Stock
Manufacturer:LEVITON
Manufacturer #:5361-I
Description
Receptacle single,new design 2-pole 3-wire,20a-125v Nema 5-20R, Ivory.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Straight Blade Single Receptacle | Type | New Design |
| Grade | Commercial | Size | 46 H x 1.31 W x 16 D IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-20R | Connection Type | Back and Side Wire |
| NEMA Rating | 5-20R | Conductor Size | 14-10 AWG |
| Material | Thermoplastic | Color | Ivory |
| Finish | Smooth | Phase | 1 |
| Terminal Connection | Screw | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 1.31 in W x 16 in D x 46 in H |
| Mounting Type | Screw, Wall Box, Flush | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | UL 94 Requirements, V2 Rated Flammability | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Fed Spec WC-596 (File E13399), UL Listed 498 (File E13399) |
| Application | Heavy Duty (in Aaccordance with VDE) | UPC | 078477131336 |
Packages
| 1 - Unit | 5 - Crate | 1860 - Pallet |
