lev5661i

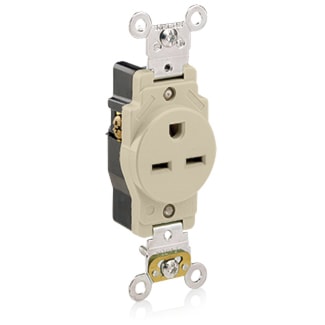

LEVITON 5661-I Straight Blade;Single Outlet Straight Blade Single Receptacle 15 A, 6-15R Ivory
lev5661i
LEVITON 5661-I Straight Blade;Single Outlet Straight Blade Single Receptacle 15 A, 6-15R Ivory
Price
$65.83
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5661-I
Description
Levitons line of extra heavy-duty industrial grade receptacle are designed and manufactured to withstand the most demanding environments. These industrial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Straight Blade Single Receptacle | Type | Single Outlet,Straight Blade |
| Grade | Commercial | Size | 46 H x 1.31 W x 16 D IN |
| Voltage Rating | 250 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 6-15R | Connection Type | Back and Side Wired |
| NEMA Rating | 6-15R | Conductor Size | 14 - 10 AWG |
| Material | Thermoplastic | Color | Ivory |
| Phase | 1 | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 1.31 in W x 16 in D x 46 in H |
| Mounting Type | Wall Box | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Fed Spec WC-596 (File E13399), UL 498 (File E13399) |
| Application | Commercial | UPC | 078477772362 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
