lev8450ig

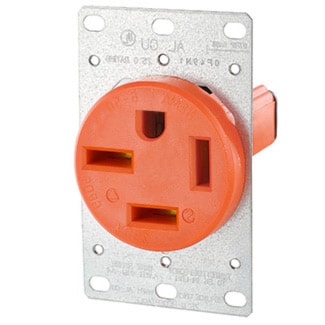

LEVITON 8450-IG Receptacle isolated ground flush mount 50A 250V
lev8450ig
LEVITON 8450-IG Receptacle isolated ground flush mount 50A 250V
Price
$154.39
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:8450-IG
Description
Industrial grade power device. Flush mount receptacle. Heavy-gauge, double-wipe copper alloy contacts. Easy-to-wire terminals accept up to no.4 AWG conductors. Terminals marked for easy identification and fast wiring. All mounting hardware included. Flush-mount devices fit single or two-gang outlet boxes. Surface-mount devices are commercial grade and have concentric knockouts for 3/4 and 1 inch conduit and adjustable cord clamp for back and bottom entrance of cable.
Specifications
| Brand Name | Leviton | Sub Brand | Locking Devices |
| Type | Power Receptacle | Size | 3.75 H x 2.75 W x 2.10 D IN |
| Voltage Rating | 250 V | Amperage Rating | 50 A |
| Number of Poles | 3 | Number of Wires | 4 |
| Connection Type | Side Wired | NEMA Rating | 15-50R |
| Material | Thermoplastic | Color | Black,Orange,White |
| Phase | 3 | Dielectric Strength | 2000 (Min.) |
| Grounding | Isolated Ground | Mounting Type | Box |
| Temperature Rating | -40 to 60 °C | Environmental Conditions | Flammability (Rated V-2 Per UL94) |
| Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399) | Application | Commercial |
| UPC | 078477843338 |
Packages
| 1 - Unit | 10 - Crate | 1680 - Pallet |
