lev90w07s

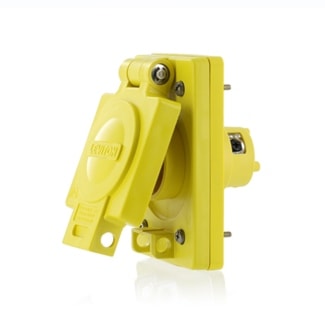

LEVITON 90W07-S Receptacle straight single 3P 3W 125V 15AMP yellow
lev90w07s
LEVITON 90W07-S Receptacle straight single 3P 3W 125V 15AMP yellow
Price
$187.05
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:90W07-S
Description
Straight Blade Single Outlet. Industrial grade, non-grounding.
Specifications
| Brand Name | Leviton | Sub Brand | Wetguard® |
| Item Name | Straight Blade Single Outlet Receptacle | Type | Single Outlet |
| Grade | Industrial | Voltage Rating | 125/250 VAC |
| Amperage Rating | 15/10 A | Number of Poles | 3 |
| Number of Wires | 3 | NEMA Configuration | Non-NEMA |
| NEMA Rating | NEMA 4, 4X, 12 | Conductor Size | 18-10 AWG |
| Material | Santoprene TPV, Valox PBT, Stainless Steel, Non-Magnetic, Nylon | Color | Yellow |
| Degree of Protection | IP66 | Dielectric Strength | 2000 V |
| Grounding | Non-Grounding | Contact Material | Electroless Nickel Coated Brass |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 V-2 Flammability, Wet, Corrosion-Resistant, Temperature Rise Maximum 30 °C (After 250 Cycles OL at 200 PCT Rated Current) |
| Standards | ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057 Certified, UL 498 Listed | Application | For Industrial Applications |
| UPC | 078477519462 |
Packages
| 1 - Unit | 6 - Crate | 1050 - Pallet |
