levt5015e

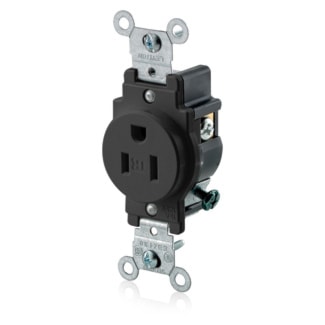

LEVITON T5015-E Tamper-Resistant Straight Blade Single Receptacle 15 A, 5-15R Black
levt5015e
LEVITON T5015-E Tamper-Resistant Straight Blade Single Receptacle 15 A, 5-15R Black
Price
$23.77
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:T5015-E
Description
Tamper-resistant receptacle have been mandated in pediatric care areas for over 20 years and have likely been successful in preventing electrical injuries. Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc
Specifications
| Brand Name | Leviton | Sub Brand | TAMPER RESISTANT COMMERCIAL R |
| Item Name | Straight Blade Single Receptacle | Type | Tamper-Resistant |
| Grade | Commercial | Size | 46 H x 1.31 W x 16 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-15R | Connection Type | Side Wired |
| NEMA Rating | 5-15R | Conductor Size | 14 - 10 AWG |
| Material | Thermoplastic | Color | Black |
| Phase | 1 | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 1.31 in W x 16 in D x 46 in H |
| Mounting Type | Wall Box | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Fed Spec WC-596 (File E13399), UL 498 (File E13399) |
| Application | Commercial | UPC | 078477441602 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
