levt5015gy

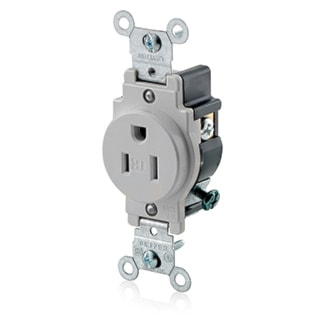

LEVITON T5015-GY Receptacle straight 2P3W 125V 15A grey
levt5015gy
LEVITON T5015-GY Receptacle straight 2P3W 125V 15A grey
Price
$23.77
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:T5015-GY
Description
Levitons tamper-resistant Decora receptacle are designed for a chic appearance, quick installation and durability. The impact-resistant thermoplastic design allows for a long service life and high performance in homes, offices, schools and other settings. It also coordinates beautifully with Leviton's complete line of Decora devices.
Specifications
| Brand Name | Leviton | Sub Brand | TAMPER RESISTANT COMMERCIAL R |
| Type | Single Outlet,Straight Blade | Grade | Commercial Specification |
| Size | 46 H x 1.31 W x 16 D IN | Voltage Rating | 125 V |
| Amperage Rating | 15 A | Number of Poles | 2 |
| Number of Wires | 3 | Connection Type | Side Wired |
| NEMA Rating | 5-15R | Material | Thermoplastic |
| Color | Light Gray | Phase | 1 |
| Dielectric Strength | 2000 (Min.) | Grounding | Self-Grounding |
| Mounting Type | Wall Box | Temperature Rating | -40 to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 (File E13399) |
| Application | Commercial | UPC | 078477441619 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
