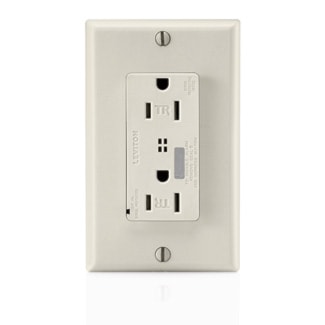

LEVITON T7280-W Receptacle duplex surge protective 15A 125V white
levt7280w
LEVITON T7280-W Receptacle duplex surge protective 15A 125V white
Price
$159.94
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:T7280-W
Description
Surge protective duplex receptacle. Tamper-resistant shutter mechanism prevents incidental contact with energized contacts. Indicator light provides visual indication that equipment is being protected. EMI/RFI Noise Filtering. Audible alarm for hidden locations (can be silenced). Wide variety of colour options aid in identifying different types of equipment or applications. Back and side-wired design with durable metal mounting strap. Point-of-use protection for up to 18000 A of surge current total.
Specifications
| Brand Name | Leviton | Sub Brand | Decora Plus™ |
| Item Name | Surge Protective Duplex Receptacle with Indicator Light and Audible Alarm | Type | Type 3 |
| Grade | Commercial | Size | 4.21 H x 1.77 W x 1.56 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back and Side Wired | Short Circuit Rating | 5 kA |
| Material | Polycarbonate | Color | White |
| Grounding | Self-Grounding | Dimensions | 1.77 in W x 1.56 in D x 4.21 in H |
| Mounting Type | Box | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 per UL94) | Standards | NEMA (WD-1, WD-6), ANSI (C-73), UL Listed (498), UL Listed (1449), CSA Certified (C22.2), NOM Certified (057) |
| Application | Commercial | UPC | 078477434437 |
Packages
| 1 - Unit | 10 - Crate | 1300 - Pallet |
