lev8490w

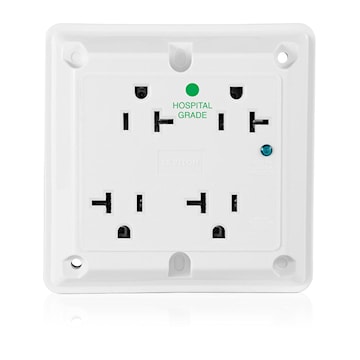

LEVITON 8490-W Receptacle 4-in-1 surge protective 2-pole 20A 125V white
lev8490w
LEVITON 8490-W Receptacle 4-in-1 surge protective 2-pole 20A 125V white
Price
$198.09
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:8490-W
Description
Extra heavy-duty hospital grade 4-in-1 surge protective receptacle. Nylon face and body. Phosphor bronze line contact. Brass 8-32 terminal screws. Steel 8-32 with 12 AWG green 8 inch pigtail grounding screw. Zinc-plated steel 8-32 mounting screws. Zinc-plated steel yoke. Steel strap. 1 HP rating. 20 A, 125 V, NEMA-5-20R, 2-pole, 3-wire. Withstands 2000 V per UL498 dielectric voltage. Full rated current limiting. -40 to 60°C operating temperature. Straight blade. Surge with indicator light.
Specifications
| Brand Name | Leviton | Sub Brand | 4-in-1 Surge Receptacles |
| Type | Type 3 SPD | Grade | Heavy-Duty Hospital |
| Size | 4.21 H x 1.77 W x 1.56 D IN | Voltage Rating | 125 V |
| Amperage Rating | 20 A | Number of Poles | 2 |
| Number of Wires | 3 | Short Circuit Rating | 5 KAMP |
| Material | Polycarbonate | Color | White |
| Grounding | Grounding | Environmental Conditions | Flammability (Rated V-2 per UL94) |
| Standards | NEMA (WD-1, WD-6);ANSI (C-73);UL Listed (498);UL Listed (1449);CSA Certified (C22.2);NOM Certified (057) | Application | Commercial |
| UPC | 078477851470 |
Packages
| 1 - Unit | 10 - Crate | 1600 - Pallet |
