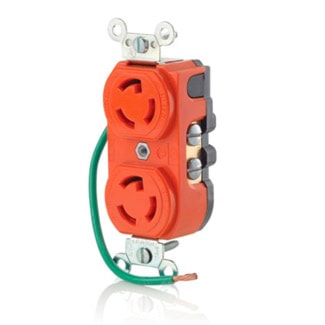

LEVITON 4750-IG Duplex Receptacle Locking Duplex Receptacle 15 A, L7-15R Orange
lev4750ig
LEVITON 4750-IG Duplex Receptacle Locking Duplex Receptacle 15 A, L7-15R Orange
Price
$104.42
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:4750-IG
Description
Levitons line of extra heavy-duty industrial grade locking receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade etc. These industrial grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Locking Devices |
| Item Name | Locking Duplex Receptacle | Type | Duplex Receptacle |
| Grade | Commercial | Size | 46 H x 1.44 W x 1.20 D IN |
| Voltage Rating | 277 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | L7-15R | Connection Type | Back and Side Wired |
| NEMA Rating | L7-15R | Conductor Size | 18-10 AWG |
| Material | Nylon | Color | Orange |
| Dielectric Strength | 2000 V | Grounding | Isolated |
| Contact Material | Brass | Dimensions | 46 in H x 1.44 in W x 1.20 in D |
| Mounting Type | Box | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File LR-406), UL Fed Spec WC-596 (File E13399) |
| Application | For Commercial | UPC | 078477778067 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
