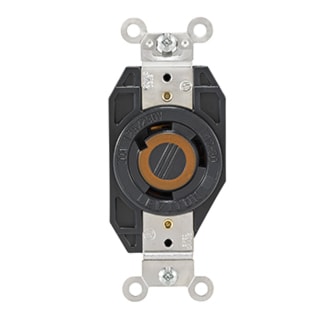

LEVITON 2660 V-0-Max™ Flush Mount Locking Receptacle Locking Single Receptacle 30 A, L10-30R Black
lev2660
LEVITON 2660 V-0-Max™ Flush Mount Locking Receptacle Locking Single Receptacle 30 A, L10-30R Black
Inventory
Unavailable for order
Manufacturer:LEVITON
Manufacturer #:2660
Description
30 Amp, 125/250 Volt, NEMA L10-30R, 3P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Non-Grounding, V-0-MAX - BLACK
Specifications
| Brand Name | Leviton | Sub Brand | V-0-Max™ |
| Item Name | Locking Single Receptacle | Type | Flush Mount Locking Receptacle |
| Grade | Industrial | Size | 3.63 H x 1.69 W x 1.31 D IN |
| Voltage Rating | 125/250 V | Amperage Rating | 30 A |
| Number of Poles | 3 | Number of Wires | 3 |
| NEMA Configuration | L10-30R | Connection Type | Back and Side Wired |
| NEMA Rating | L10-30R | Conductor Size | 14-8 AWG |
| Material | Nylon | Color | Black |
| Dielectric Strength | 2000 V | Grounding | Non-Grounding |
| Contact Material | Brass,Brass | Dimensions | 1.69 in W x 1.31 in D x 3.63 in H |
| Mounting Type | Box, Flush | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 per UL94) | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42, UL Fed Spec WC-596 (File E13399), UL 498 |
| Application | Industrial | UPC | 078477045862 |
Packages
| 1 - Unit | 10 - Box | 30 - Crate | 2640 - Pallet |
