lev97w47s

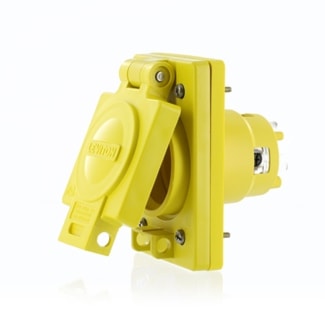

LEVITON 97W47-S Wetguard® Single Outlet Locking Single Receptacle 20 A, NEMA 4, 4X, 12 Yellow
lev97w47s
LEVITON 97W47-S Wetguard® Single Outlet Locking Single Receptacle 20 A, NEMA 4, 4X, 12 Yellow
Price
$215.74
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:97W47-S
Description
Locking single outlet. Industrial grade, grounding.
Specifications
| Brand Name | Leviton | Sub Brand | Wetguard® |
| Item Name | Locking Single Receptacle | Type | Single Outlet |
| Grade | Industrial | Voltage Rating | 125 VAC |
| Amperage Rating | 20 A | Number of Poles | 2 |
| Number of Wires | 3 | NEMA Configuration | L5-20R |
| NEMA Rating | NEMA 4, 4X, 12 | Conductor Size | 16-10 AWG |
| Material | TPV | Color | Yellow |
| Degree of Protection | IP66 | Terminal Connection | Screw Clamp |
| Dielectric Strength | 2000 V | Grounding | Grounding |
| Contact Material | Electroless Nickel-Coated Brass | Dimensions | 4.63 in L x 3.13 in W x 3.52 in H |
| Mounting Type | Screw | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | UL 94 V2 Flammability | Standards | NEMA (WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42, UL 498 |
| Application | For Industrial use | UPC | 078477519592 |
Packages
| 1 - Unit | 5 - Crate | 600 - Pallet |
