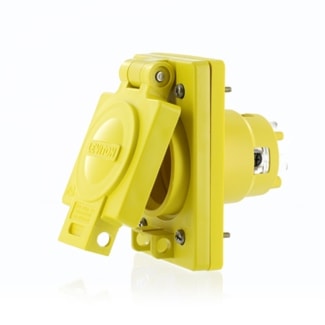

LEVITON 97W81-S Receptacle locking single 4P 5W 120/208V 20AMP yellow
lev97w81s
LEVITON 97W81-S Receptacle locking single 4P 5W 120/208V 20AMP yellow
Price
$243.04
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:97W81-S
Description
Locking single outlet. Industrial grade, grounding.
Specifications
| Brand Name | Leviton | Sub Brand | Wetguard® |
| Item Name | Locking Single Outlet Receptacle | Type | Single Outlet |
| Grade | Industrial | Voltage Rating | 120/208 VAC |
| Amperage Rating | 20 A | Number of Poles | 4 |
| Number of Wires | 5 | NEMA Configuration | L21-20R |
| NEMA Rating | NEMA 4, 4X, 12 | Conductor Size | 16-10 AWG |
| Material | Santoprene TPV, Valox PBT, Stainless Steel, Non-Magnetic, Nylon | Color | Yellow |
| Degree of Protection | IP66 | Dielectric Strength | 2000 V |
| Grounding | Grounding | Contact Material | Electroless Nickel Coated Brass |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | UL 94 V-2 Flammability, Wet, Corrosion-Resistant, Temperature Rise Maximum 30 °C (After 250 Cycles OL at 200 PCT Rated Current) |
| Standards | ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057 Certified, UL 498 Listed | Application | For Industrial Applications |
| UPC | 078477519714 |
Packages
| 1 - Unit | 5 - Crate | 600 - Pallet |
