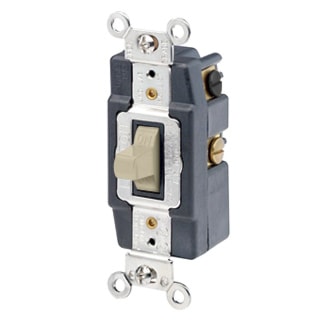

LEVITON 1288-I Industrial Grade AC Toggle Switch Extra Heavy-Duty 30 A, 120/277 VAC, Back or Side Wired
lev1288i
LEVITON 1288-I Industrial Grade AC Toggle Switch Extra Heavy-Duty 30 A, 120/277 VAC, Back or Side Wired
Price
$297.70
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:1288-I
Description
Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Heavy gauge copper alloy one-piece arm for top performance. Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance. External clamp-type terminal provides secure connection for back and side wiring.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Switches |
| Item Name | Industrial Grade AC Toggle Switch | Type | Extra Heavy-Duty |
| Voltage Rating | 120 - 277 VAC | Amperage Rating | 30 A |
| Number of Poles | 2 | Actuator | Toggle |
| Contact Configuration | DPDT | Color | Ivory |
| Grade | Industrial | Action | Maintained Contact |
| Wiring Configuration | Back or Side Wired | Terminal Connection | Screw, Self-Grounded |
| Material | Thermoplastic | Dimensions | 1.37 in W x 2.29 in D x 4.06 in H |
| Mounting | Screw Mount | Standards | NEMA WD-1, WD-6, ANSI (C-73), NOM Certified (057), CSA C22.2 No. 111 (File 152105), UL Federal Specification WS896E (File E7458), UL Standard (UL 20), RoHS Compliant |
| Application | For Commercial Use | UPC | 078477168394 |
Packages
| 1 - Unit | 10 - Crate | 2100 - Pallet |
