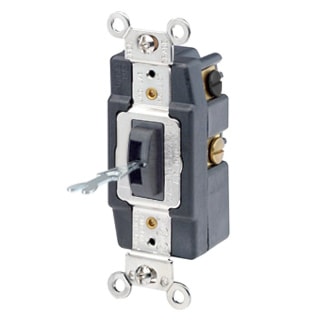

LEVITON 1288-L Industrial Grade Toggle Switch Toggle Switch 30 A, 120 - 277 VAC, Back and Side Wire
lev1288l
LEVITON 1288-L Industrial Grade Toggle Switch Toggle Switch 30 A, 120 - 277 VAC, Back and Side Wire
Price
$258.03
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:1288-L
Description
Maintained-contact extra heavy-duty specification grade. Single-pole, double throw, centre off and tamper resistant. Back and side wired. Large silver cadmium-oxide contacts for long life prevent sticking, welding and excessive pitting. Clamp-type terminals accept up to No.10 copper wire. Full rated current capacity on fluorescent, tungsten and resistive loads, motor load capacity up to 80% switch current rating.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Switches |
| Item Name | Industrial Grade Toggle Switch | Type | Toggle Switch |
| Voltage Rating | 120 - 277 VAC | Amperage Rating | 30 A |
| Number of Poles | 2 | Actuator | Key |
| Contact Configuration | DPDT | Color | Brown |
| Grade | Industrial | Action | Maintained |
| Wiring Configuration | Back and Side Wire | Dimensions | 1.37 in W x 1.26 in D x 46 in H |
| Mounting | Box | Standards | NEMA (WD-1 and WD-6), ANSI (C-73), NOM 057 Certified, CSA C22.2 No. 111 (File 152105), UL Federal Specification WS896E (File E7458), UL Standard (UL 20) |
| Application | Commercial | UPC | 078477855201 |
Packages
| 1 - Unit | 10 - Crate | 2100 - Pallet |
