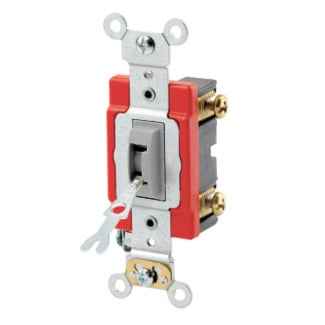

LEVITON 1221-2GL Industrial Grade Locking AC Toggle Switch Extra Heavy-Duty 20 A, 120/277 VAC, Back or Side Wired
lev12212gl
LEVITON 1221-2GL Industrial Grade Locking AC Toggle Switch Extra Heavy-Duty 20 A, 120/277 VAC, Back or Side Wired
Price
$67.55
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:1221-2GL
Description
Industrial grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability. Toggle locking single-pole AC quiet switch. Self grounding, back and side wired.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Switches |
| Item Name | Industrial Grade Locking AC Toggle Switch | Type | Extra Heavy-Duty |
| Voltage Rating | 120 - 277 VAC | Amperage Rating | 20 A |
| Number of Poles | 1 | Actuator | Key |
| Color | Grey | Grade | Industrial |
| Action | SP | Wiring Configuration | Back or Side Wired |
| Terminal Connection | Screw, Self-Grounded | Material | Thermoplastic |
| Dimensions | 1.31 in W x 1.03 in D x 4.06 in H | Mounting | Screw Mount |
| Standards | NEMA WD-1, WD-6, ANSI (C-73), NOM Certified (057), CSA C22.2 No. 111 (File 152105), UL Federal Specification WS896E (File E7458), UL Standard (UL 20), RoHS Compliant | Application | For Commercial Use |
| UPC | 078477358030 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 4500 - Pallet |
