lev12212i

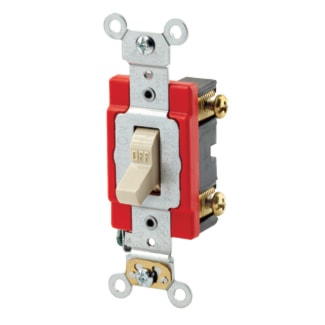

LEVITON 1221-2I Industrial Grade Toggle Switch Toggle Switch 20 A, 120/277 VAC, Back and Side Wire
lev12212i
LEVITON 1221-2I Industrial Grade Toggle Switch Toggle Switch 20 A, 120/277 VAC, Back and Side Wire
Price
$62.24
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:1221-2I
Description
Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Heavy gauge copper alloy one-piece arm for top performance. Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance. External clamp-type terminal provides secure connection for back and side wiring.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Switches |
| Type | Toggle Switch | Voltage Rating | 120 - 277 VAC |
| Amperage Rating | 20 A | Number of Poles | 1 |
| Actuator | Toggle | Color | Ivory |
| Grade | Extra Heavy-Duty Industrial Specification | Action | SP |
| Mounting | Box | Standards | NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20);RoHS Compliant |
| Application | Commercial | UPC | 078477239896 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 4500 - Pallet |
