lev12212l

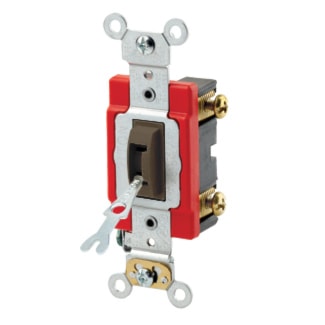

LEVITON 1221-2L Industrial Grade Toggle Switch Toggle Switch 20 A, 120 - 277 VAC, Back and Side Wire
lev12212l
LEVITON 1221-2L Industrial Grade Toggle Switch Toggle Switch 20 A, 120 - 277 VAC, Back and Side Wire
Price
$77.28
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:1221-2L
Description
Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Heavy gauge copper alloy one-piece arm for top performance. Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance. External clamp-type terminal provides secure connection for back and side wiring.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Switches |
| Item Name | Industrial Grade Toggle Switch | Type | Toggle Switch |
| Voltage Rating | 120 - 277 VAC | Amperage Rating | 20 A |
| Number of Poles | 1 | Actuator | Key |
| Color | Brown | Grade | Industrial |
| Action | Off | Wiring Configuration | Back and Side Wire |
| Terminal Connection | Screw | Material | Thermoplastic |
| Dimensions | 1.31 in W x 13 in D x 46 in H | Mounting | Box, Flush, Screw |
| Standards | NEMA (WD-1 and WD-6), ANSI (C-73), NOM 057 Certified, CSA C22.2 No. 111 (File 152105), UL Federal Specification WS896E (File E7458), UL Standard (UL 20), RoHS Compliant | Application | Commercial |
| UPC | 078477358016 |
Packages
| 1 - Unit | CH - Unit | 10 - Box | 50 - Crate | 4500 - Pallet |
