lev12232

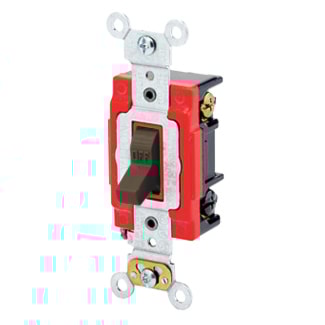

LEVITON 1223-2 Switch toggle industrial 3way 120/277V 20A brown
lev12232
LEVITON 1223-2 Switch toggle industrial 3way 120/277V 20A brown
Price
$50.00
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:1223-2
Description
Leviton’s Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Heavy gauge copper alloy one-piece arm for top performance. Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance. External clamp-type terminal provides secure connection for back and side wiring.
Specifications
| Brand Name | Leviton | Sub Brand | INDUSTRIAL SWITCHES |
| Type | Aluminum two gang toggle switch and duplex receptacle cover | Voltage Rating | 120/277 VAC |
| Amperage Rating | 20 A | Number of Poles | 1 |
| Actuator | Toggle | Color | Brown |
| Grade | Extra Heavy-Duty Industrial Specification | Mounting | Universal: hook and cord with 6 FT whip, adaptor plate for J-box and pendant |
| Standards | NEMA (WD-1 and WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 111 (File 152105);UL Fed Spec WS896E (File E7458);UL Standard (UL 20);RoHS Compliant | Application | Commercial |
| UPC | 078477223475 |
Packages
| 1 - Unit | CH - Unit | 10 - Box | 20 - Crate | 4160 - Pallet |
