levd670k1s2

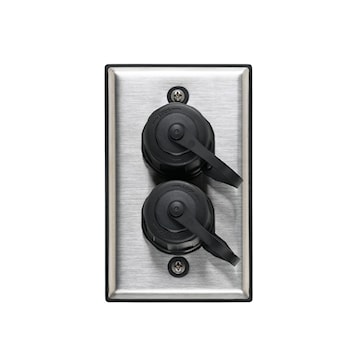

LEVITON D670K-1S2 Kit outlet DuraPort industrial 1G 2port
levd670k1s2
LEVITON D670K-1S2 Kit outlet DuraPort industrial 1G 2port
Price
$135.61
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:D670K-1S2
Description
DuraPort industrial connectivity products provide IP67-class protection to safeguard your connectivity from humidity/moisture, corrosive materials, temperature extremes and other conditions often found in the industrial environment. Connector housing shall accept all standard Leviton QuickPort® modules. Connectors and related components shall be IP67 rated. Wallplate shall be constructed of stainless steel, with an integral over-molded gasket. Connector housing shall be made of PBT, be cULus listed and compliant with TIA/TR 42.9 Industrial Draft specifications.
Specifications
| Brand Name | Leviton | Sub Brand | DuraPort® |
| Item Name | Industrial Outlet Kit | Type | 2-Port, Chemical and Oil Resistant |
| Number of Gangs | 1 | Length | 4.62 in |
| Material | 302/304 Stainless Steel | Color | Stainless Steel |
| Orientation | Vertical | Width | 2.87 in |
| Thickness | 2.24 in | Finish | Matt |
| Mounting | Screw Mount | Temperature Rating | -40 to 65 °C |
| Includes | Polybutylene Terephthalate (PBT) Connector Housing and Cap, 18-8 Stainless Steel Mounting Screw, Thermoplastic Elastomer Wallplate Gasket | Standards | cULus Listed, IP67, TIA/TR 42.9, TIA/EIA-568-B.2, TIA/EIA-568-B.2-1, UL 1863 Listed |
| Application | For Commercial Applications | UPC | 078477355572 |
Packages
| 1 - Unit | 25 - Crate | 2625 - Pallet |
