ilsipc2504/0b

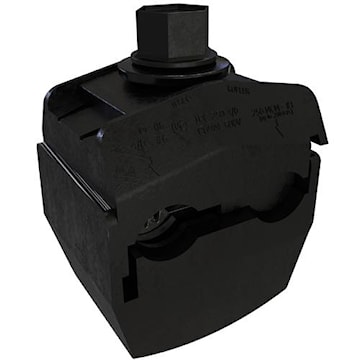

ILSCO IPC-250-4/0-B Connector insu piercing 250kcmil-1AWG 600V 260A
ilsipc2504/0b
ILSCO IPC-250-4/0-B Connector insu piercing 250kcmil-1AWG 600V 260A
Price
$143.97
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:IPC-250-4/0-B
Description
Dual rated insulation piercing connector. Body is molded from tough, resilient glass-filled nylon. Compact design. Insulation piercing. Pre-filled with silicone lubricant. Provides high degree of breakage resistance and long dependable use. Easily penetrates most types of insulation. Can be used as a splice or tap connector. Provides a visual guide for proper installation of conductors.
Specifications
| Brand Name | ILSCO | Sub Brand | KUP-L-Tap |
| Type | IPCB:INSULATION PIERCE BG | Number of Ports | 1 |
| Number of Conductors | 2 | Color | Black |
| Conductor Type | Stranded | Voltage Rating | 600 V |
| Material | Copper | Temperature Rating | 90 degrees C |
| Standards | CSA File Number:LR-29601;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed | Application | Insulation Piercing Connector |
| UPC | 783669532920 |
Packages
| 1 - Unit | 2 - Box |
