ilsta1000s

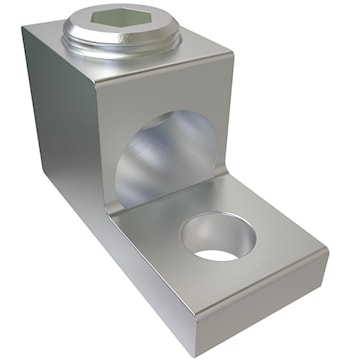

ILSCO TA-1000-S Lug mechanical aluminium 1000-500kcmil 5/8in
ilsta1000s
ILSCO TA-1000-S Lug mechanical aluminium 1000-500kcmil 5/8in
Price
$129.56
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:TA-1000-S
Description
Dual rated aluminum mechanical Lug, one conductor, manufactured from high strength 6061-T6 aluminum alloy. Chamfered wire entry. Provides low contact resistance, ease of installation. Suitable for use with either copper or aluminum conductors. Ensures reliability for copper or aluminum conductors.
Specifications
| Brand Name | Ilsco | Sub Brand | ILSCO |
| Item Name | Mechanical Lug | Type | TA:1 CONDUCTOR AL/CU |
| Conductor Type | Aluminum | Conductor Size | 1000 - 500 kcmil |
| Number of Bolt Holes | 1 | Material | Aluminum |
| Number of Conductors | 1 | Bolt Size | 5/8 in |
| Tongue Size | 1.5 in L x 1.438 W x 0.5 in T | Voltage Rating | 35000 V |
| Mounting Hole Size | 0.656 in | Temperature Rating | 90 °C |
| Finish | Tin Plated | Color | Silver |
| Dimensions | 3.25 in L x 1.438 in W x 1.812 in H | Standards | CSA File No. LR-29601, UL 486A/B, UL File No. E6207, UL 453G, UL/cULus Listed |
| Application | Mechanical Lug, One Conductor | UPC | 783669895667 |
Packages
| 1 - Unit | 3 - Box |
