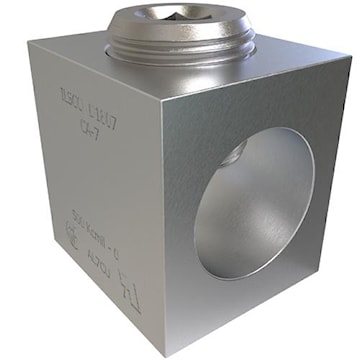

ILSCO CA7 Lug mechanical box alu 500kcmil-1/0AWG 3/8in
ilsca7
ILSCO CA7 Lug mechanical box alu 500kcmil-1/0AWG 3/8in
Price
$81.78
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:CA7
Description
Dual rated aluminum box-type mechanical lug. Manufactured from high strength 6061-T6 aluminum alloy. Design includes bossed mounting holes. Suitable for use with either copper or aluminum conductors. Provides low contact resistance. Ensures reliability. Acts as an anti-rotation device and prevents connector from turning.
Specifications
| Brand Name | Ilsco | Sub Brand | ILSCO |
| Item Name | Mechanical Lug | Type | Box, Dual-Rated |
| Conductor Type | Aluminium, Solid, Stranded, Copper | Conductor Size | 1/0 AWG - 500 kcmil |
| Number of Bolt Holes | 2 | Material | Aluminum |
| Number of Conductors | 1 | Voltage Rating | 35000 V |
| Temperature Rating | 75 °C | Finish | Tin Plated |
| Color | Silver | Standards | CSA Certified in File Number LR-29601, UL File Number E6207, UL/cULus Specification UL 486A/B Recognized |
| Application | For Aluminum and Copper Conductor | UPC | 783669022759 |
Packages
| 1 - Unit | 10 - Box |
