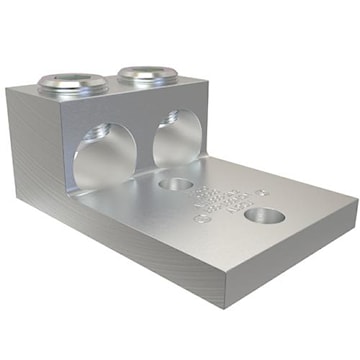

ILSCO AU-1000-2NS ClearChoice Mechanical Lug 500-1000 kcmil 6061-T6 Aluminum Alloy
ilsau10002ns
ILSCO AU-1000-2NS ClearChoice Mechanical Lug 500-1000 kcmil 6061-T6 Aluminum Alloy
Price
$210.70
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:AU-1000-2NS
Description
Dual rated aluminum mechanical lug, two conductor. Manufactured from high strength 6061-T6 aluminum alloy. Chamfered wire entry. Provides low contact resistance, ease of installation. Suitable for use with either copper or aluminum conductors. Ensures reliability for copper or aluminum conductors.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Item Name | Mechanical Lug | Type | AU:2 CONDUCTOR AL/CU |
| Conductor Type | Stranded | Conductor Size | 500-1000 kcmil |
| Material | 6061-T6 Aluminum Alloy | Number of Conductors | 2 |
| Bolt Size | 1/2 in | Tongue Size | 3.125 in L x 3.1880 in W x 0.5 in T |
| Voltage Rating | 2 kV | Specifications | 9/16 in Hex |
| Mounting Hole Size | 1-3/4 in | Temperature Rating | 90 °C |
| Finish | Tin Plated | Color | Silver |
| Dimensions | 4-3/4 in L x 3-3/16 in W x 1.9380 in H | For Use With | Either Copper or Aluminum Conductors |
| Standards | CSA File Number LR 29601, UL Specifications UL 486A-B, UL File Number E6207 | Application | For Terminating Connector |
| UPC | 783669007947 |
Packages
| 1 - Unit | 3 - Box |
